Robotic Routing Applications

CNC Support Ltd provides high speed router spindles for use in Robotic Applications.

We can supply complete solutions, from spindle supply to full equipment including complete wiring harnesses, inverters and pneumatics.
We have a good range of new spindles in stock for immediate delivery.

Light duty high speed Robotic routing –
1055 spindle
Medium applications
ES929
Heavy duty machining
ES779

We also supply 2 axis electrospindles for 5 axis CNC machining applications
HS655





CNC Dynamics routing drilling

A new addition to our range is this cost effective routing and drilling CNC router. The spindle configuration can be chosen for any of our CNC Dynamics bed sizes.

The machine is designed with simple reliable functionality. Aimed at areas of industry such as furniture manufacture, caravan and motorhome and nested base manufacturing.

Two 5kw 24000rpm fixed tool spindles which can machine individually or as a matched pair for parallel machining.

9 spindle HSD multiborer for rapid point to point drilling.

HSD Aggregate

HSD Aggregate IMG_2389

Horizontal boring and routing
HSK F63 Coupling

HSD ER25 Aggregate

CNC Dynamics Vertex machines

Introducing the new higher specification Vertex range of CNC Dynamics routers.

These machines are designed and built for high performance engineering applications. A host of new features allow customers to tailor the ideal machine specification for their application.

High end Num Flexium CNC system. Digital servo system with high speed contouring. Increased accuracy and improved cornering at the speeds required for high performance router tooling.

Intelligent vacuum systems providing up to 600 cubic metres per hour of vacuum on multi zoned vacuum matrix tables. The best nesting hold down available. Pressure hold down systems combined with other hold down developments allow nesting of even the smallest components without tagging.

A range of HSD spindle systems available with rotational speeds of up to 50,000rpm.

The Vertex range of machines also includes multi axis configurations for 3d surfacing.

Electrospindle Spindle Rebuild CNC Spindle Repair

Authorised UK HSD Repair centre
CNC Spindle repair
CNC Router head and spindle rebuilds and sales

HSD Spindle Service and Sales

CNC Support Ltd carries out router head rebuilds for most popular types of CNC routers. HSD Spindles, SCM spindles, Wadkin spindles Rye spindles.
CNC Spindle rebuild.

We are the official HSD authorised repair centre for the UK.

See also http://www.cncspindles.co.uk/

Our dedicated spindle rebuild department is staffed by engineers with rebuild experience dating back to the inception of CNC into the woodworking industry.

We specialise in the rebuild of Automatic Toolchange spindles such as HSD, Omlat, Colombo.

To avoid downtime during rebuild we offer loan heads for some CNC machines. We can provide site engineers for spindle removal and refitting.

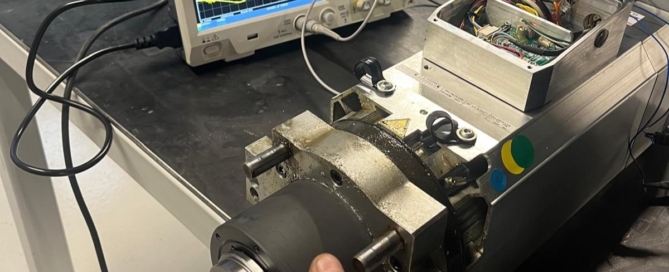

We use the latest in spindle condition monitoring technology

• Imbalance
• Mechanical condition (vibration)
• Bearing condition (vibration)
• Tool nose run-out
• Clamp force
• EM distance (ISO / HSK)
• Belt tension
• Speed accuracy
• Resonance frequency
• Balancing

Spindle Rebuilds|Comments Off on Electrospindle Spindle Rebuild CNC Spindle Repair

HSD ES510 24kw spindle

ES510 HSk A63

ES510

















This is a heavy duty asynchronous milling spindle for Steel, marble, stone and non ferrous products.
24kw 28kw/s2 and speeds up to 24000rpm.

Through spindle cooling via the rotary joint option.
380v 6 pole. Ceramic bearings.
Rated Torque S1/S6 38Nm/46Nm
Weight 75kg
We can supply this spindle complete with a fully closed loop inverter system.

Our inverter systems are compatible with all feedback systems and can be used with CAN bus, Profibus and Ethernet.

ES919 Bulleri Spindle Repair

IMG_3517









ES919 spindle used on Bulleri CNC machines.

We can offer full rebuild or replacement of these toolchanging spindles.

HSD ES350

HSD ES350

HSD ES350













HSD ES350
HSK E40 Tooling
Long Nose
36000 Rpm
Liquid Cooling

CNC Support Ltd can supply this equipment in kit form. To include Inverter, Cabling, Toolholders, Tool retaining clips and all ancillaries.

We provide full technical support for our products.



HSD ES793

HSD ES793 CNC Support Ltd



















HSD ES793 18kw spindle with HSKA63 tool holding.
12000 Rpm
380v
15/18Kw
Liquid Cooling
ISO40 or HSKA63
Weight 42Kg

CNC Support Ltd can supply this equipment in kit for. To include Inverter, Cabling, Toolholders, Tool retaining clips and all ancillaries. We provide full technical support for our products.

Aggregates

We have a number of configurations of Aggregate cutting heads for use in either ISO30 or HSK63F toolchange spindles.

Please contact us for more information.
