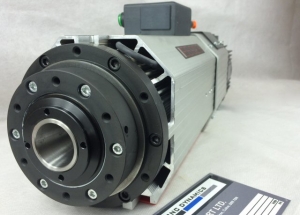

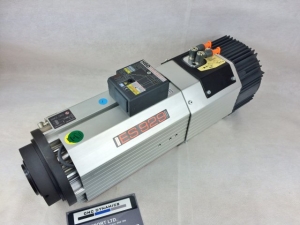

HSD ES929   HSD ES929

H6161H0817
Power S1/S6 12Kw/14Kw
Tool locking –  Automatic with pneumatic piston
Short or long Nose
Rated Voltage 380V
Poles 4
Bearings Front Ceramic
Bearings Rear Ceramic
Bearings Long Life lubricated
Max Rpm 24000,00
Weight 26,00Kg
Spindle Body Aluminium Alloy
Cooling Liquid or for

Spindle used for heavy duty routing of wood plastics and composites , CNC Robotic applications, 5 axis applications, patternmaking and model making. forced air option available.

2 pole and 4 pole variants available.
