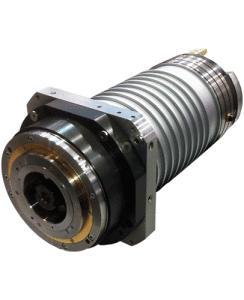

HSD ES510 24kw Spindle

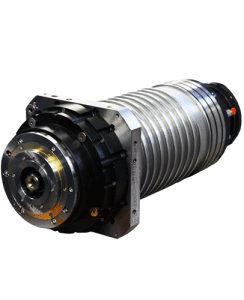

ES510 HSk A63










This is a heavy duty asynchronous milling spindle for Steel, marble, stone and non ferrous products.
24kw 28kw/s2 and speeds up to 24000rpm.

Through spindle cooling via the rotary joint option.
380v 6 pole. Ceramic bearings.
Rated Torque S1/S6 38Nm/46Nm
Weight 75kg
We can supply this spindle complete with a fully closed loop inverter system.

Our inverter systems are compatible with all feedback systems and can be used with CAN bus, Profibus and Ethernet.
