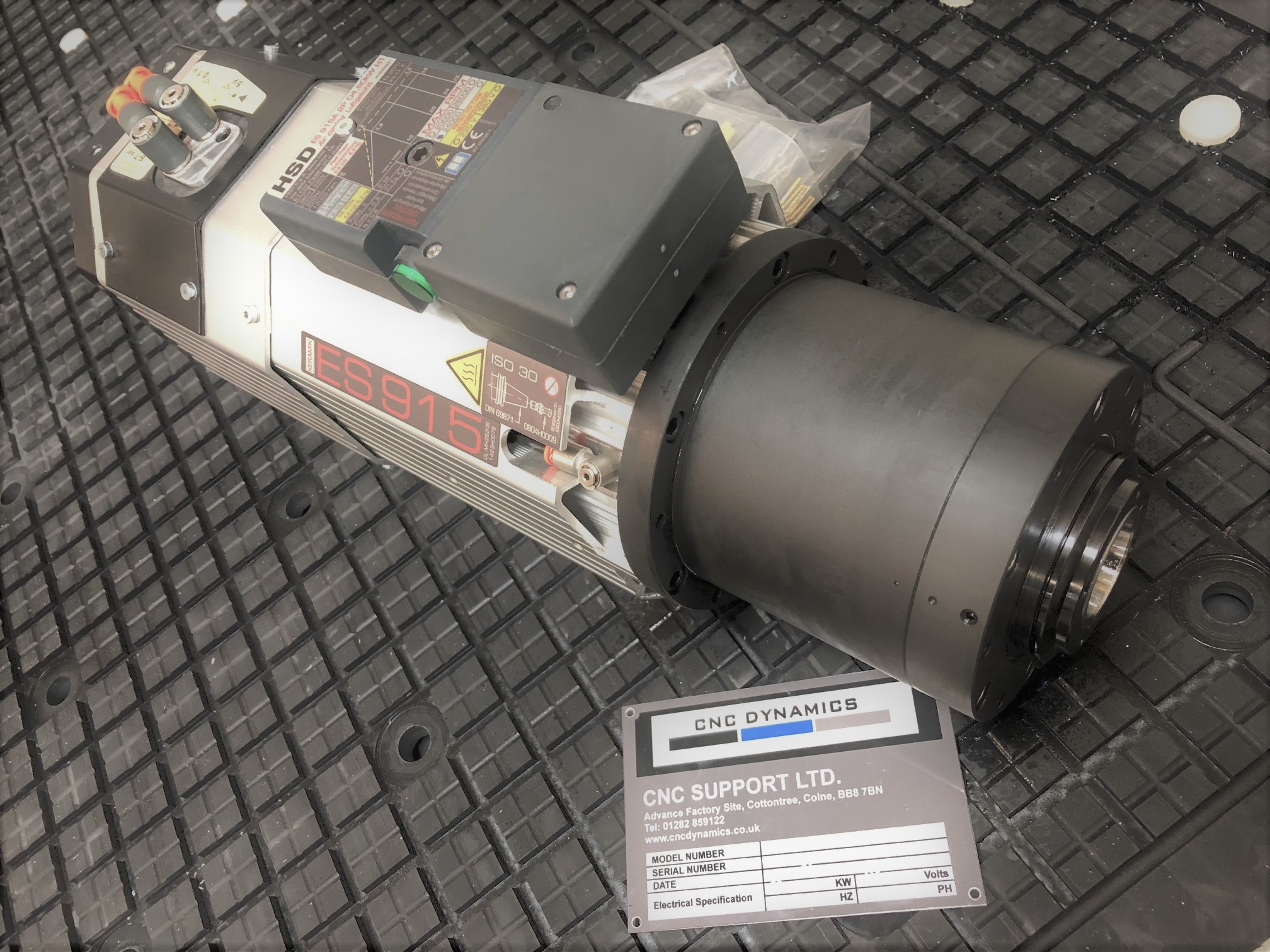

HSD ES915 Spindle



3.8kw to 4.6 kw HSD spindle, 24000 rpm auto toolchange function.

Power S1/S6 3,8Kw/4,6Kw
Tool Clamping Automatic with pneumatic piston
Rated Voltage 380/220V
Poles 2
Bearings Front Ceramic or Steel
Bearings Rear Ceramic or Steel
Bearings lubrication Long Life lubricated
Max Rpm 24000,00
Weight 21,00Kg
Spindle Aluminium Alloy
Cooling Electric-Fan

Spindle used for CNC Robotic applications, 5 axis applications, patternmaking and modelmaking.
